Adjustable pallet racking

The adjustable pallet racking is specially designed for the storage of palletized loads and containers. It is the most common system for its easy assembly, optimized cost and versatility.


  • Designed for the storage of palletized loads and containers.
  • Allows direct and unitary access to each of the stored pallets
  • The dimensions of the aisles are defined according to the trucks that will be used.
  • In most frequent cases, highly specialized storage equipment is not required.
  • The capacity of elevation in height is unlimited. The only limiting factor is the technical characteristics of the FLT itself and/or the free height of the building.
  • The load levels arrangement can be easily modified, thanks to the 50 mm pitch height adjustment.
  • Narrow aisle or double-deep APRs can also be designed to increase the capacity of the warehouse.
  • The APR system can be completed with lower manual picking levels or other accessories if the warehouse flow requires orders to be picked along the aisles.

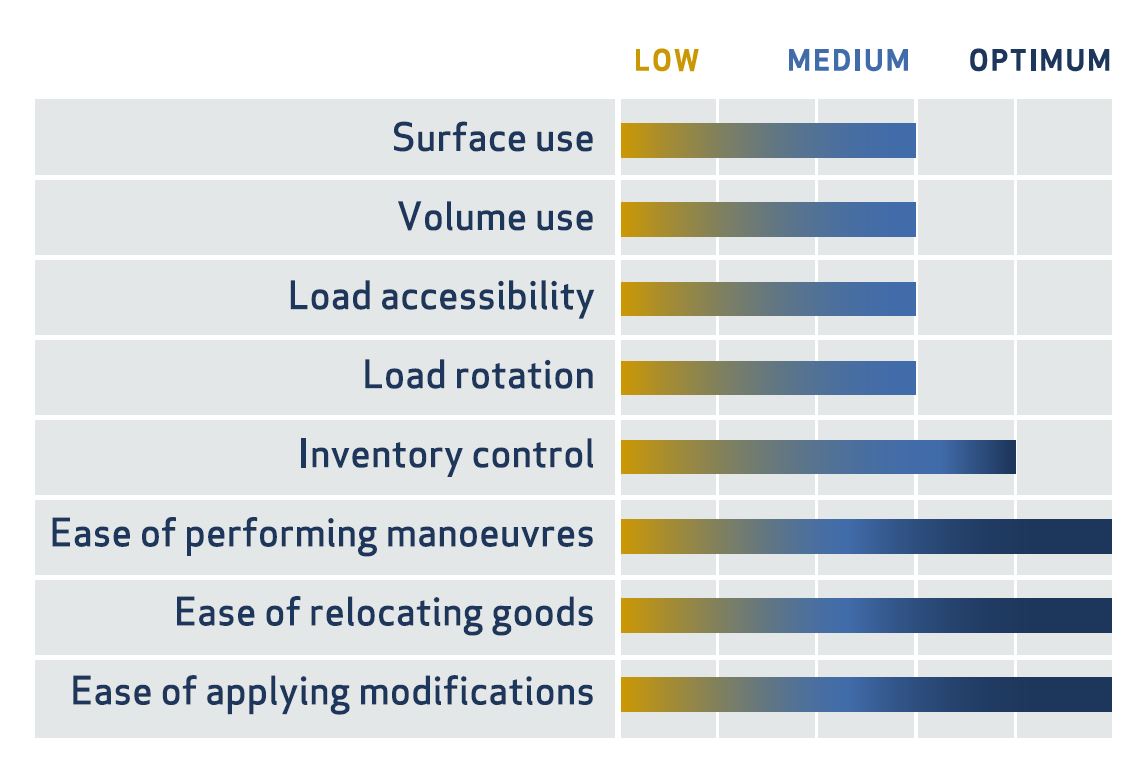

Adjustable pallet racking – Single deep

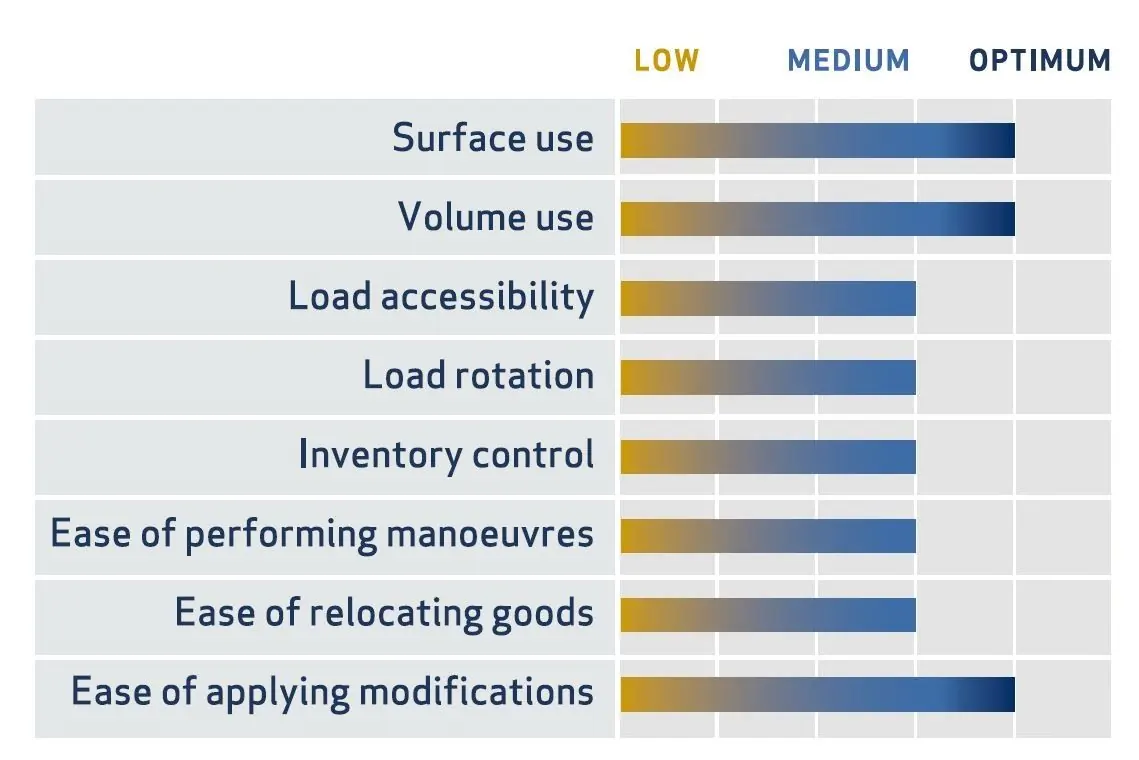

Adjustable pallet racking – Double deep

Are you interested in any of our products?

Request a quote
Puerta de seguridad para paletas Entreplantas

Racking Safety Inspections

POLYPAL has a Racking Safety Inspections Service for warehouses with pallet racking.

There is no need for further investment in new equipment

  • POLYPAL adapts the storage solution according to the handling equipment already available at the warehouse.

Safety for racking elements

Frame protection with lateral steel guard

Frame protection with lateral steel guard

The frame protection absorbs the impacts that could occur against the frames with the shocks of the trucks, thus preventing damage to the structure of the rack.
Upright protection elements

Upright protection elements

Protects the upright from shocks. They are mandatory to install in:
  • all extreme uprights that give the cross aisles
  • all uprights located at the intersection of aisles and cross passages
  • all exposed uprights located at tunnels and heads of rows
Design and features according to UNE-EN 15512.
Side frame protection with wood board

Side frame protection with wood board

Protects the frames from accidental shocks with the truck.
Rear safety mesh

Rear safety mesh

Prevents from goods falling on sensitive areas such as aislesworking stationsmachinery...
Back stop

Back stop

Prevents the pallets from falling. It can be completed with the rear safety mesh for extra safety.

Tailor-made solution

If you are not sure which storage solution best suits your needs, please contact us. We will help you get your project off the ground.
